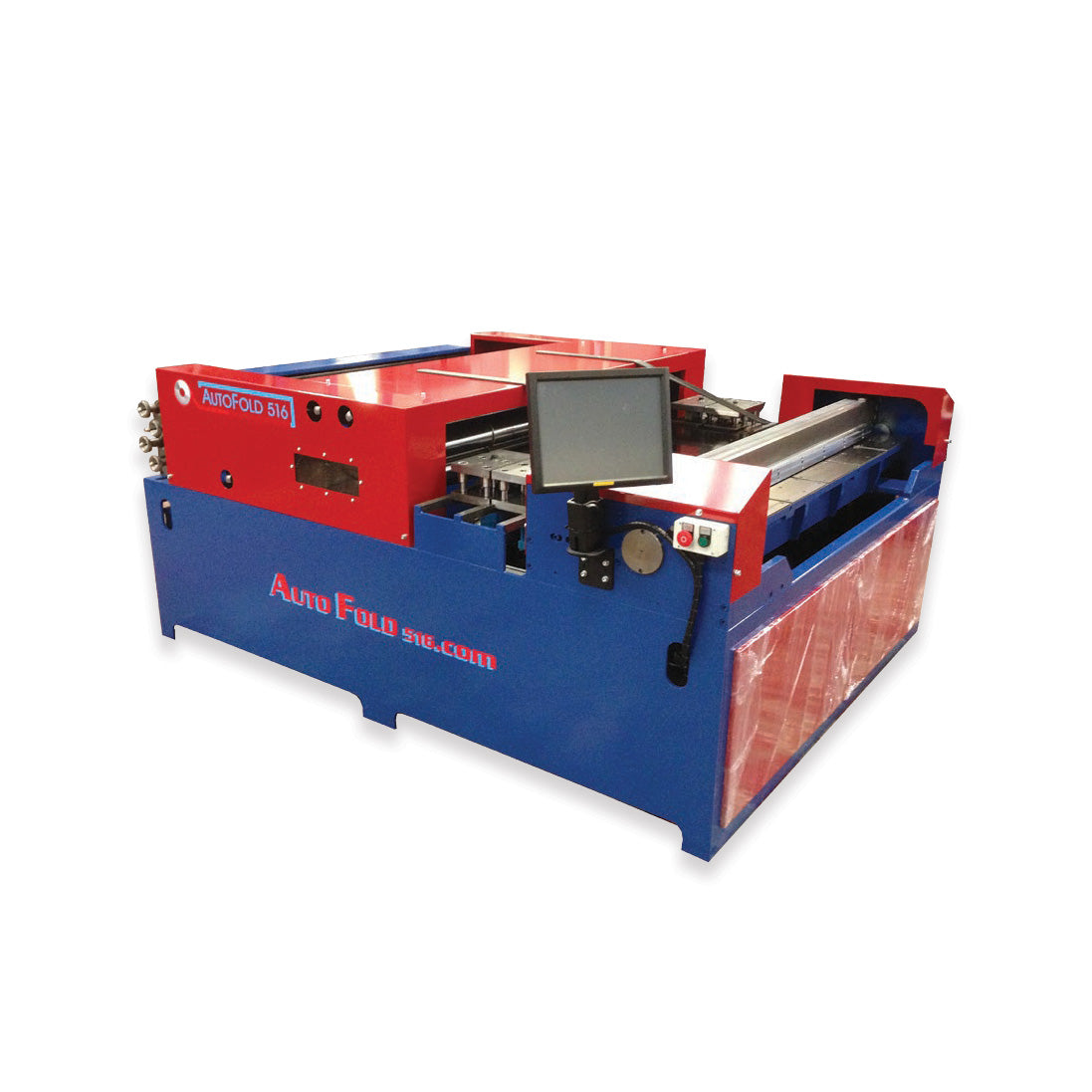

Hydroform Autofold 516

Hydroform Autofold 516

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out

The Autofold 516 duct processing coil line is an automated ducting machinery that offers the ability to produce a 1500mm width coil to be manufactured into sections including flat sheet "I" section, "U" section and fully wrapped ductwork automatically. The time taken to form one average size section of fully wrapped duct is approximately 20 seconds, making it a highly efficient machine.



  • Adjustable Lever
  • Beader ( 18gs capacity )
  • 60" ( 1500mm ) x 16ga hydraulic shear
  • 60" ( 1500mm ) x 16ga hydraulic folder
  • CNC controller with self-dianostics
  • Up to 60' (18.29m) per minute line speed
  • Minimum fully wrapped duct section 5.9" x 5.9" ( 150 x 150mm )
  • Maximum duct section is only limited to your material handling capability
  • Autofold Width: 7'6" ( 2.28m )
  • Autofold Length : 18' (5.49m ) with 2 standard coils
  • Each additional '2 in 1' coil holder adds 7' ( 2.13m )


Installation & Warranty

Hydroform will set up and install the Autofold. Normal installation takes between one to three working days. The machine has a full one year parts and labour warranty from date of installation except tooling, electronics, and electrical parts that is damaged due to unstable power supply.


For more detailed features of the machine, please contact us to request for our product catalog.
